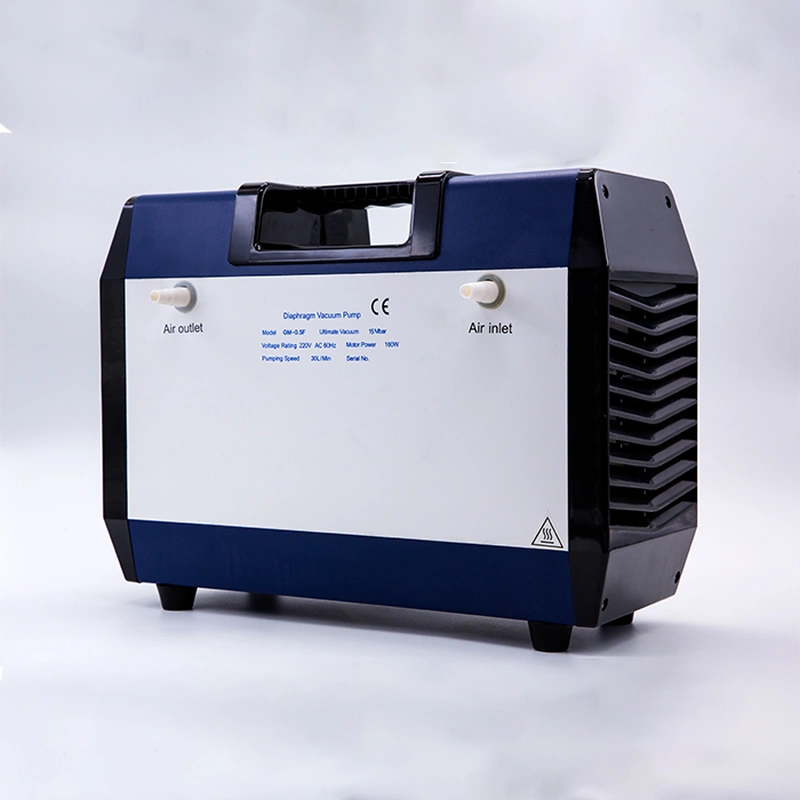

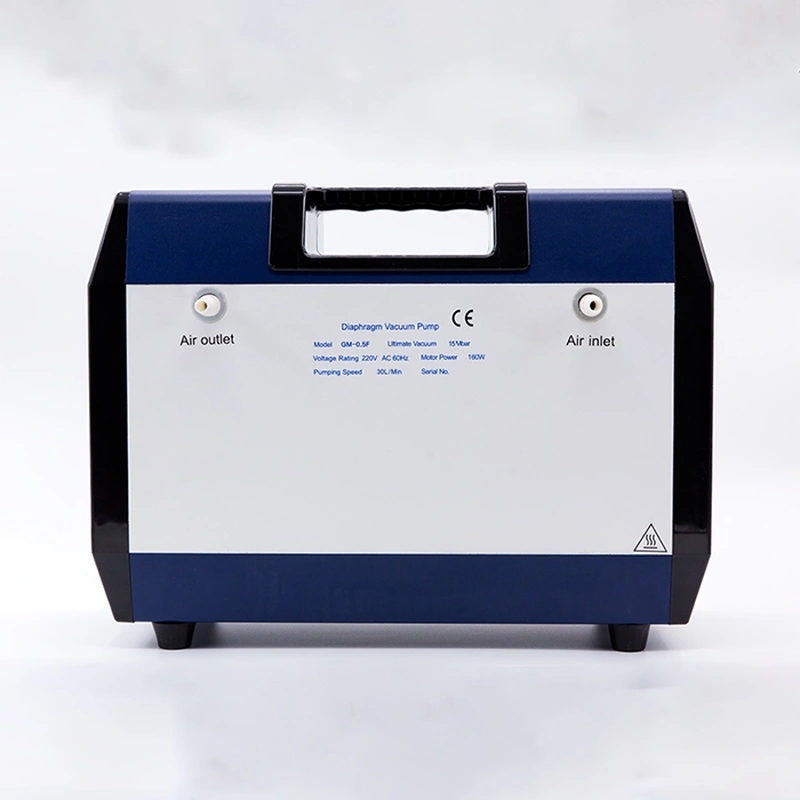

Product Introduction
Each of our models has a corresponding anti-corrosion pump, and the technical parameters remain unchanged.
The anti-corrosion pump is characterized by Teflon treatment, and the gas contact part adopts Teflon surface treatment, which is resistant to strong acids and alkalis, and is suitable for corrosive chemicals, pharmaceuticals, petrochemical gases, etc.
This pump is suitable for vacuum filtration, vacuum distillation, rotary evaporation, vacuum concentration, centrifugal acceleration, solid phase extraction, etc.
This is a cost-effective product with reliable quality and unique structure design, suitable for the needs of most laboratories.
Applications
Vacuum Filtration
Vacuum Distillation
Vacuum Adsorption
Solvent Filtration
Solid Phase Extraction
Vacuum Drying
Compressing And Converting Gas
Deaeration
Features
Air chamber and air road using PTFE material. This model has strong resistance to chemical corrosion resistance and organic solvent properties.
Bearing imported classic bearing, smooth operation, low noise, high efficiency.
The products use high-grade electrical power system design. Automatic cooling exhaust system is designed in the body, ensures continuous operation 24 hours a day.
The high precision vacuum pump improved the efficiency of the laboratory.
The appearance of the atmosphere and advanced structure obtained two patents of China.
Product Parameters
Speed of Evacuation(L/Min) | 30 | Temp of the body(ºC) | <55 |
Ultimate Pressure Vacuum | 15mbar | Weight(kg) | 13.5 |
Inlet(mm) | φ6 | Pump Head | 2 |
Outlet(mm) | φ6 | Dimensions (L×W×H)mm | 370x144x275
|
Working Temperature(ºC) | 7-40 | Noise Level(DB) | <60 |
Voltage Rating | 220V, 50Hz | Diaphragm | NBR |
Motor Power | 160W
| Valves | NBR |
