Product Introduction

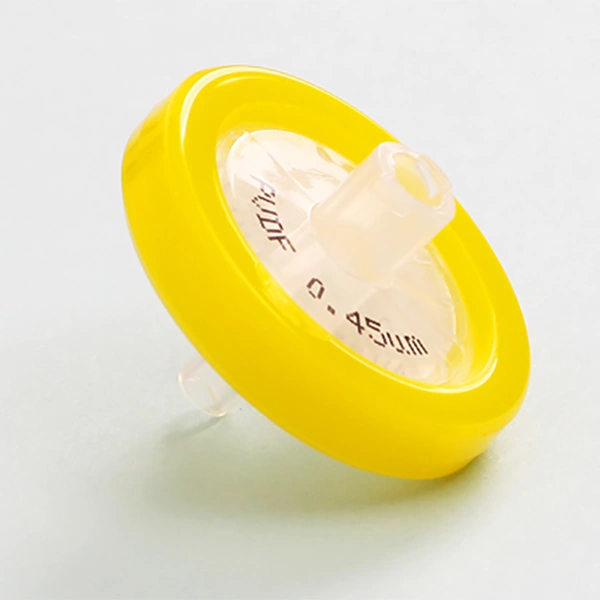

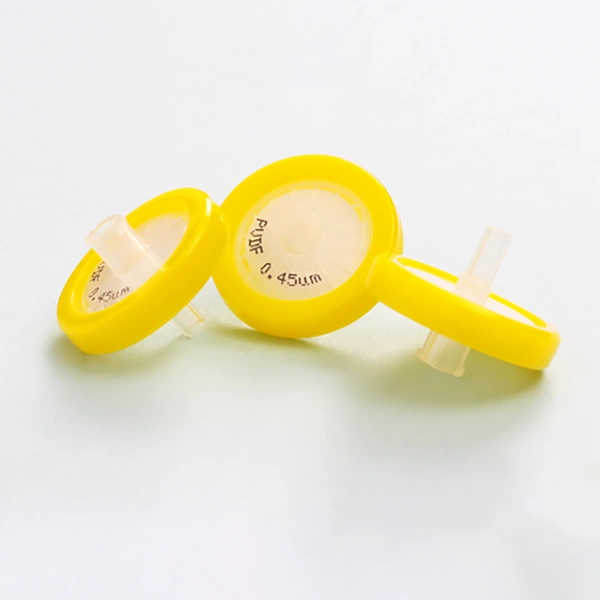

Syringe Filters are syringe-operated filters for the clarification of aqueous solutions (column eluates, tissue culture additives, HPLC samples, etc.). Doing beautify appearance on general syringe filters and containing high quality membrane materials make your experiment performance more perfect. It is designed to be color-coding which makes the products more beautiful and innovative. The classic range is available in all of the major membranes including Nylon, PTFE, PVDF, CA and PES, which are supplied in 13mm, 25mm, 30mm formats in polypropylene housings. The membrane has two different properties. Hydrophobic and hydrophilicThe Hydrophobic membrane is low protein-binding. It is useful for HPLC sample filtration as well as general biological filtration.The hydrophilic membrane is usd for aseptic filtration in biological pharmacy
Applications
1. HPLC sample preparation
2. Routine QC analysis
3. Content uniformity
4. Removal of protein precipitate
5. Dissolution testing
6. Food analysis
7. Bioscience analysis
8. Environmental samples
Product Parameters
Parameters | 13mm | 25mm | 30mm |
Effective Filtration Area(cm2) | 1 | 3.8 | 4.5 |
Maximum Pressure | 87psi (6.0 bar) at 20℃ | 87psi (6.0 bar) at 20℃ | 87psi (6.0 bar) at 20℃ |
Maximum Operating Temperature | 50℃ | 50℃ | 50℃ |
Materials of Construction | Housing: Polypropylene | Housing: Polypropylene | Housing: Polypropylene |
Filtration Media | As specified | ||
Holdup Volume(ul) | ＜25 | ＜100 | ＜200 |
Sample Volume(ml) | ＜10 | ＜100 | ＜200 |
Connectors | Inlet: Female Luer Lock Outlet: Male Slip Luer | Inlet: Female Luer Lock Outlet: Male Slip Luer | Inlet: Female Luer Lock Outlet: Male Slip Luer |
Flow Direction | Inlet: Female Luer Lock Outlet: Male Slip Luer(MSL) | Inlet: Female Luer Lock Outlet: Male Slip Luer(MSL) | Inlet: Female Luer Lock Outlet: Male Slip Luer(MSL) |
Product Information
Part No. | Description | Packaging |
| YZS13PV010NH | 13mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.1um | 100pcs/pk |
| YZS13PV022NH | 13mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.22um | 100pcs/pk |
| YZS13PV045NH | 13mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.45um | 100pcs/pk |
| YZS13PV080NH | 13mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.8um | 100pcs/pk |
| YZS13PV120NH | 13mm Non-sterile Hydrophobic PVDF Syringe Filter, 1.2um | 100pcs/pk |
| YZS13PV300NH | 13mm Non-sterile Hydrophobic PVDF Syringe Filter, 3.0um | 100pcs/pk |
| YZS13PV500NH | 13mm Non-sterile Hydrophobic PVDF Syringe Filter, 5.0um | 100pcs/pk |
YZS25PV010NH | 25mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.1um | 100pcs/pk |
| YZS25PV022NH | 25mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.22um | 100pcs/pk |
| YZS25PV045NH | 25mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.45um | 100pcs/pk |
| YZS25PV080NH | 25mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.8um | 100pcs/pk |
| YZS25PV120NH | 25mm Non-sterile Hydrophobic PVDF Syringe Filter, 1.2um | 100pcs/pk |
| YZS25PV300NH | 25mm Non-sterile Hydrophobic PVDF Syringe Filter, 3.0um | 100pcs/pk |
| YZS25PV500NH | 25mm Non-sterile Hydrophobic PVDF Syringe Filter, 5.0um | 100pcs/pk |
YZS30PV010NH | 30mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.1um | 100pcs/pk |
YZS30PV022NH | 30mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.22um | 100pcs/pk |
| YZS30PV045NH | 30mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.45um | 100pcs/pk |
| YZS30PV080NH | 30mm Non-sterile Hydrophobic PVDF Syringe Filter, 0.8um | 100pcs/pk |
| YZS30PV120NH | 30mm Non-sterile Hydrophobic PVDF Syringe Filter, 1.2um | 100pcs/pk |
| YZS30PV300NH | 30mm Non-sterile Hydrophobic PVDF Syringe Filter, 3.0um | 100pcs/pk |
| YZS30PV500NH | 30mm Non-sterile Hydrophobic PVDF Syringe Filter, 5.0um | 100pcs/pk |
YZS13PV010NL | 13mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.1um | 100pcs/pk |
YZS13PV022NL | 13mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.22um | 100pcs/pk |
| YZS13PV045NL | 13mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.45um | 100pcs/pk |
| YZS13PV080NL | 13mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.8um | 100pcs/pk |
| YZS13PV120NL | 13mm Non-sterile Hydrophilic PVDF Syringe Filter, 1.2um | 100pcs/pk |
| YZS13PV300NL | 13mm Non-sterile Hydrophilic PVDF Syringe Filter, 3.0um | 100pcs/pk |
| YZS13PV500NL | 13mm Non-sterile Hydrophilic PVDF Syringe Filter, 5.0um | 100pcs/pk |
YZS25PV010NL | 25mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.1um | 100pcs/pk |
YZS25PV022NL | 25mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.22um | 100pcs/pk |
| YZS25PV045NL | 25mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.45um | 100pcs/pk |
| YZS25PV080NL | 25mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.8um | 100pcs/pk |
| YZS25PV120NL | 25mm Non-sterile Hydrophilic PVDF Syringe Filter, 1.2um | 100pcs/pk |
| YZS25PV300NL | 25mm Non-sterile Hydrophilic PVDF Syringe Filter, 3.0um | 100pcs/pk |
| YZS25PV500NL | 25mm Non-sterile Hydrophilic PVDF Syringe Filter, 5.0um | 100pcs/pk |
YZS30PV010NL | 30mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.1um | 100pcs/pk |
YZS30PV022NL | 30mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.22um | 100pcs/pk |
| YZS30PV045NL | 30mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.45um | 100pcs/pk |
| YZS30PV080NL | 30mm Non-sterile Hydrophilic PVDF Syringe Filter, 0.8um | 100pcs/pk |
| YZS30PV120NL | 30mm Non-sterile Hydrophilic PVDF Syringe Filter, 1.2um | 100pcs/pk |
| YZS30PV300NL | 30mm Non-sterile Hydrophilic PVDF Syringe Filter, 3.0um | 100pcs/pk |
| YZS30PV500NL | 30mm Non-sterile Hydrophilic PVDF Syringe Filter, 5.0um | 100pcs/pk |
