Advanced Control System, Excellent Separation
1. 10 kinds of Accel/Decel modes; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
2. Short running function, easy to diversification of centrifugation.
3. Proprietary SCT speed control technical, high efficiency.
4. Proprietary SBT soft brake control technique, to avoid mix up and ensure get maximum specimen.
5. Timing control, the centrifugal time can be free to choose minutes or seconds, to achieve optimal centrifugation
High Safety, Ease of use
1. Auto Rotor identification, no need to select rotor number, avoid to over-speed running, ensure safety.
2. Over temperature, over speed, door lid and imbalance switch off and other protection functions, with sound and light alarm, to ensure human and instrument security.
3. Steel body, Stainless steel chamber, Steel Protective sleeve, three damping structure, to prevent accidents.
4. Optional rotor with aerosol-tight lid, the rotor can be high temperature and high pressure sterilization, to prevent biological pollution.
Friendly Display, Humanity Operate
1. LCD, LED multi-screen display, program group, Accel/Decel, RPM/ RCF, time, temperature and other parameters can be set without key combination, easy to operate;
2. Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, 40 kinds of self-defining programs can be stored and recalled, reduce duplication of operation;
Good Parts, Reliable and Long-lasting
1. Brushless frequency converter motor, super speed bearing and Freon-free compressor imported from Europe, high quality.
2. Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO), extend the service life of the machine.
Universal, Multifunctional
1. Not only support angle rotor at high speed, but also support swing rotor for big capacity & low speed, suitable for multi-field research, production.
Technical Parameter

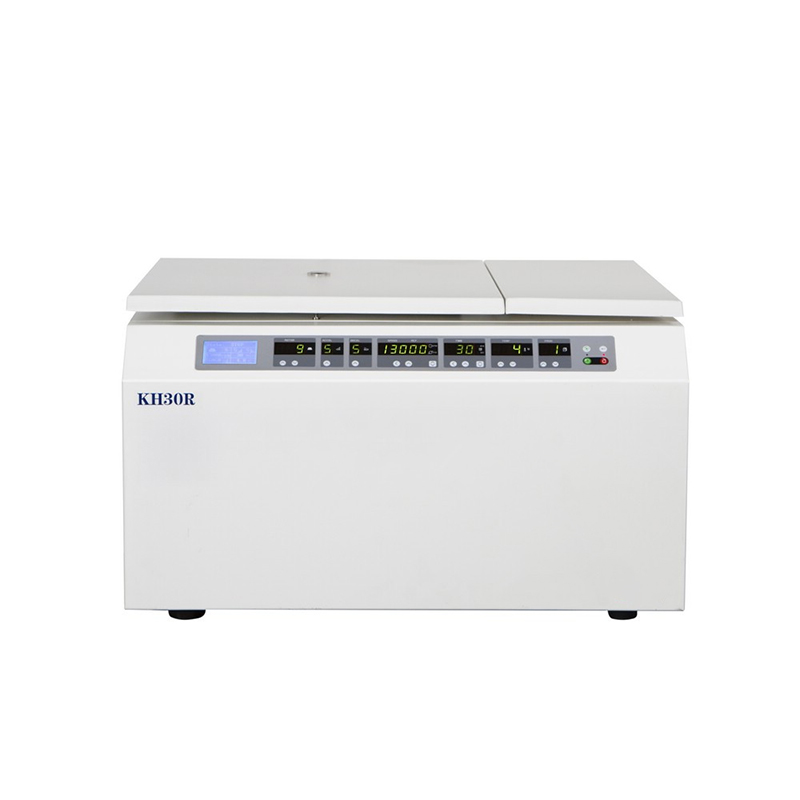

Part No. | KH30R | KH30RF |
Max Speed | 23000r/min |
Max RCF | 36400×g |
Max Capacity | Angle Rotor: 600m Swing Rotor: 3000mll |
Speed Accuracy | ±20r/min |
Temperature Range | -20℃-+40℃ |
Temperature Accuracy | ±1℃ |
Time Range | 1s-999min/999s |
Power Supply | AC 220V 50Hz 18A |
Noise | ≤60dB |
Dimension | 670×750×440mm | 760×630×920mm |
Weight | 110kg | 150kg |
Rotor
| Model | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube(mm) |
Angle Rotor | No.4 | 6×0.5ml | 23000 | 36400 | Φ8×32 |
No.6-1 | 12×1.5/2.0ml | 21000 | 31300 | Φ10×42 |
No.6-2 | 18×0.5ml | 21000
| 31300 | Φ8×32 |
No.9 | 24×1.5/2.0ml | 17000 | 28750 | Φ10×42 |
No.12 | 10×5ml | 18000
| 23540 | Φ14×54 |
No.16 | 12×10ml | 18000
| 32600 | Φ16×81 |
No.22-1 | 6×50ml | 15000
| 25400 | Φ28×105 |
No.22-2 | 6×30ml | 15000 | 25400 | Φ25×93.5 |
No.31 | 4×100ml | 12000 | 17700 | Φ38×124 |
No.52-1 | 8×15ml | 13000
| 20300 | Φ16×115 |
No.52-2 | 8×50ml | 13000 | 20300
| Φ28×105 |
No.56-1 | 48×1.5/2.0ml | 13000 | 14740 | Φ10×42 |
No.56-2 | 4×8×0.2ml | 13000 | 14740 | 8-strip tube |
No.56-3 | 8×8×0.2ml | 13000 | 14740 | 8-strip tube |
No.59 | 6×100ml | 10000
| 13975 | Φ38×124 |
Microtiter Plate Rotor | No.43 | 2×2×96 Holes | 4000 | 2540 | PCR Plate Microtiter Plate Rotor |
Swing Rotor | No.63 | 4×50/100ml | 5500 | 5640 | Φ38×124 |
No.69-1 | 4×500ml | 4000
| 3150 | Φ80×140 |
No.69-2 | 72×5/7ml | 4000 | 3150 | Vacumm Blood Collection Tube |
No.69-3 | 96×5/7ml | 4000 | 3150 |
No.69-4 | 120×5/7ml | 4000 | 3150 |
No.70-1 | 4×250ml | 4000
| 2930 | Φ64×113 |
No.70-2 | 48×5/7ml | 4000 | 2930 | Vacumm Blood Collection Tube |
No.71-1 | 4×750ml | 4000 | 3350
| Φ99×130 |
No.81-1 | 8×50/100ml | 4000 | 2960 | Φ38×124 |
No.81-2 | 32×10/15ml | 4000 | 2960 | Φ16×85-118 |
