Tube Gel Electrophoresis System DYCZ-27B

  • For the tubular Isoelectric focusing gel electrophoresis and can be used for the first dimension of 2-DE.

Description

Product Introduction

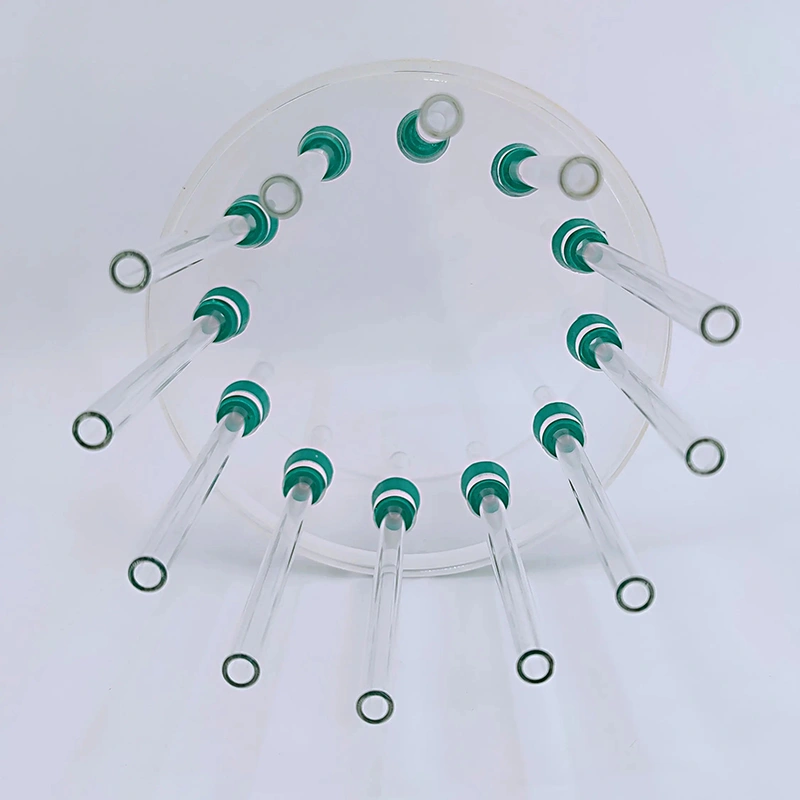

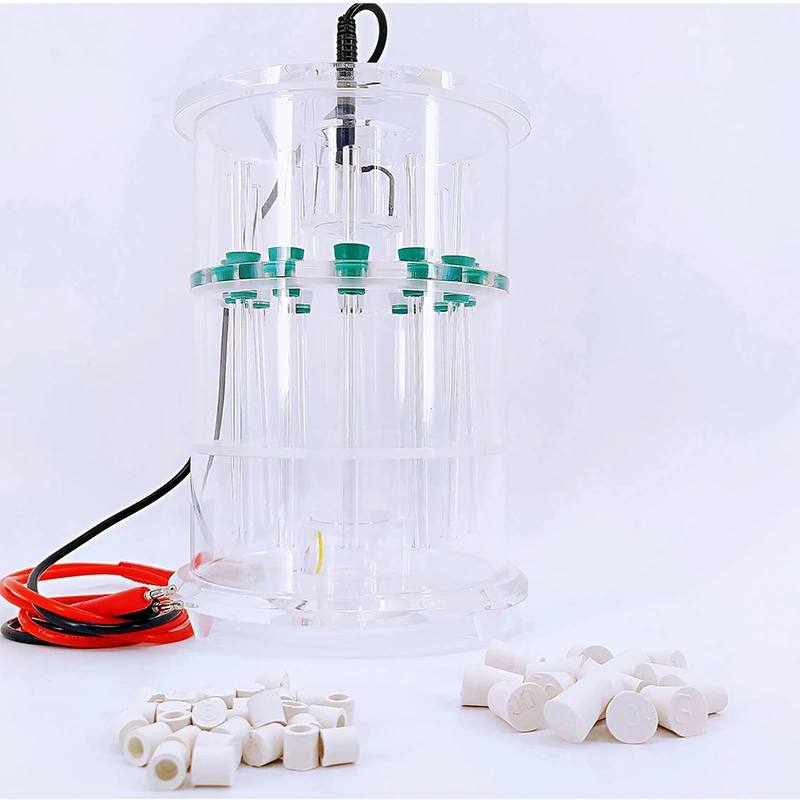

DYCZ-27B tube gel electrophoresis cell is used together with electrophoresis power supply, it is designed for years of reproducible and rigorous use and is suitable for performing the first phase of 2-D electrophoresis (Isoelectric Focusing – IEF), allowing 12 tube gels to be run at any one time. 70 mm high middle ring of the electrophoresis cell and the gels differ in the length of the tubes that are 90 mm or 170 mm long, allow a high degree of versatility in separation desired. DYCZ-27B tube gel electrophoresis system is easy to assemble and use.


Feature

1. Unique gel casting device, convenient and quick.


Application

For the tubular Isoelectric focusing gel electrophoresis and can be used for the first dimension of 2-DE.


Specification

ModelDYCZ-27B
Dimension (LxWxH)170×170×235mm
Gel Size (LxW)Φ5×90mm Φ5×170mm
Number of Samples12
Buffer Volume1000ml
Weight2.0kg
Recommended Power SupplyDYY-10C/DYY-12
