Product Introduction

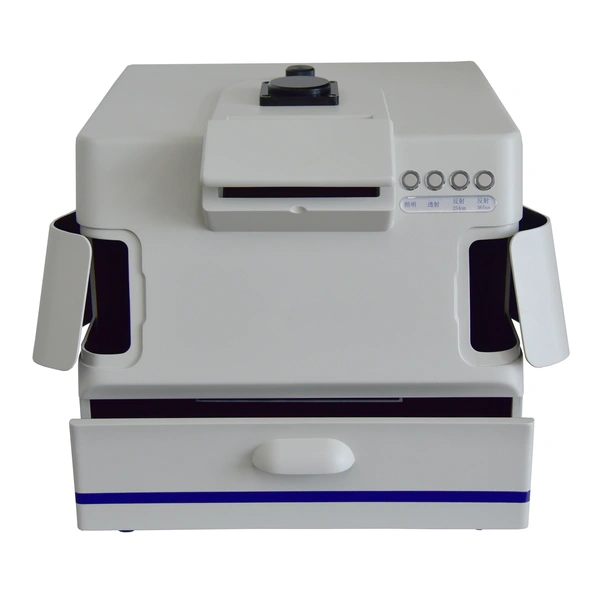

WD-9403C is a black-box type UV analyzer which applies to observe, take photos for nucleic acid electrophoresis.
It has three kinds of wavelengths to choose. The reflection wavelength is 254nm and 365nm, and the transmission wavelength is 302nm.
It has a dark chamber, no need darkroom. Its drawer-type light box makes it convenient for use.
Feature
1. Dark chamber design, no need darkroom, can be used in all-weather;
2. Safety for the user;
3. Drawer-type light box, convenient for use;
4. Strong and durable;
5. 3 different wavelengths of UV light are available;
6. With illumination and camera bracket inside (Camera system is optional).
Application
Apply to observe, take photos for nucleic acid electrophoresis.
Specification
| Model | WD-9403C |
| Dimension (WxDxH) | 425 x 430 x 380mm |
| Transmission UV Wavelength | 302nm |
| Reflection UV Wavelength | 254nm and 365nm |
| Transmission Area (LxW) | 200x200mm |
| UV Lamp Power | 8W for 302nm lamp 6W for 254nm and 365nm lam |
| Weight | 20kg |
