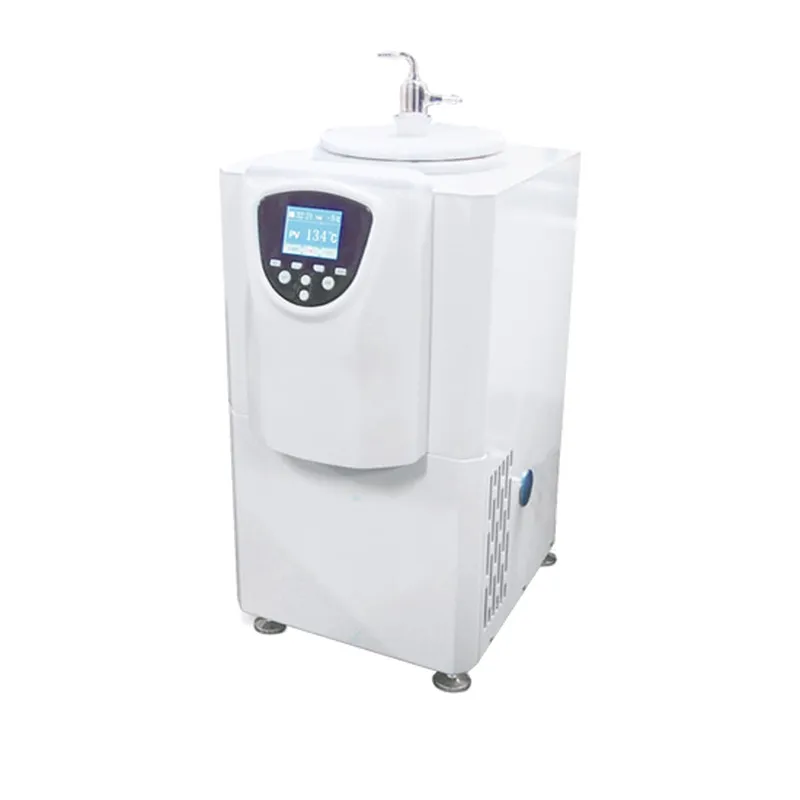

Cold Traps

Product Introduction

1. These cold traps are rapid solvent capture systems for efficient condensation of solvent vapors.

2. When they condense vapor into a liquid, the reduction of gaseous substances increases the vacuum of the system, thus speeding up the concentration process and significantly improving the performance of the vacuum concentration system.

Features

1. TFT-LCD true color display screen, dual operation modes of touch screen and physical keys, displaying the set parameters and operating parameters at the same time.

2. Sealed wide-mouth collection bottles made of soda-lime glass with good chemical resistance and optional capacity.

3. Imported fluorine-free refrigeration compressor unit and environmentally friendly refrigerant R404a, allowing for a wide temperature control range: -50℃ - room temperature (CT-50) (can be set during operation); pre-cooling function (quickly cool down to the set temperature); standby cooling function (maintain the set temperature in the standby state).

4. Closed circulation mode to avoid laboratory environmental pollution.

5. Volume as small as 0.8m3, allowing for a collection area of up to 760cm2. High recovery efficiency with a max capture volume

of 284ml/6H (absolute ethanol).

Product Parameters
