Features
1. Microprocessor control, operated by touch panel, LED & LCD display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, Imported super speed bearing from Europe, smooth running and maintenance free.
3. Multistage damping system, the freon-free compressor from Europe, low noise and slight vibration, green.
4. Vertical and steel body, stainless steel centrifugal chamber, key components are imported, easy to clean and durable.
5. The function of rotor identity System, overspeed, over temperature, door interlock, imbalance protection, and the function of service life calculation, ensure safety.
6. Pre-cooling design for centrifugal chamber, fast cooling. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency
7. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, 40 kinds of self-defining operating programs can be stored and recall, to achieve the best centrifugal result.
8. Proprietary SBT control technique and rotor design,to avoid mix up,ensure maximum separating effect.
9. Hold-on and transient centrifuging.
10. Can be configured with 5ml, 7ml, 10ml, 15ml, 30ml,50ml and several kinds of adapters, meet the different customers'needs.
11. Widely used in the field of radicalization immunity, biochemistry, pharmacy and so on.
Technical Parameter

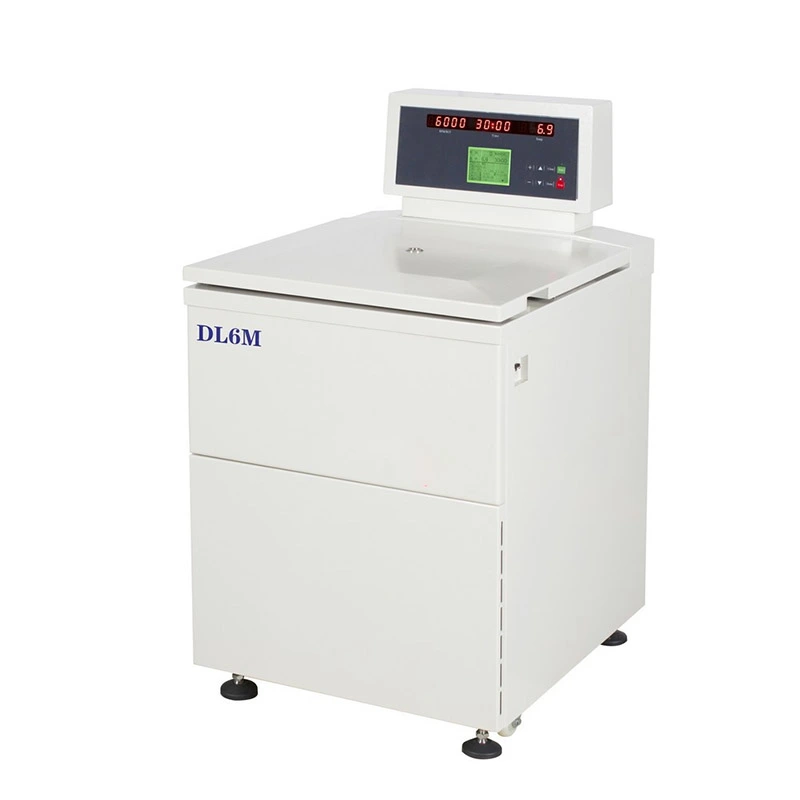

Part No. | DL6M |
Max Speed | 6000r/min |
Max RCF | 7040×g |
Max Capacity | 6000ml |
Speed Accuracy | ±20r/min |
Temperature Range | -20℃-+40℃ |
Temperature Accuracy | ±1℃ |
Time Range | 0-99h59min59sec |
Power Supply | AC 220V 50Hz 35A |
Noise | ≤60dB |
Dimension | 830×720×1250mm |
Weight | 268kg |
Rotor
Model | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube(mm) |
Angle Rotor | No.29 | 6×300ml | 6000 | 6030 | Φ62×139 |
No.33 | 6×500ml | 6000 | 7040 | Φ74×168 | |
Swing Rotor | No.65 | 6×1000ml(round bucket) | 4200 | 4950 | Φ100×175 |
6×1000ml(rectangle bucket) | 4200 | 4950 | special for blood bag/bank |
