Features
1. Microprocessor control, operated by touch panel, visual digital display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, Imported super speed bearing from Europe, smooth running and maintenance free.
3. Multistage damping system, low noise and slight vibration, green.
4. Vertical and steel body, stainless steel centrifugal chamber, key components are imported, easy to clean and durable.
5. Overspeed, door interlock, imbalance protection functions, ensure safety.
6. Special air current design, the temperature of centrifuge chamber is stable. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency
7. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, 40 kinds of self-defining operating programs can be stored and recall, to achieve the best centrifugal result.
8. Can be configured 5ml, 7ml, 10ml, 15ml, 30ml,50ml and several kinds of adapters, to meet the customer's multiple needs.
9. Hold-on and transient centrifuging, easy to diverse centrifugation.
Technical Parameter

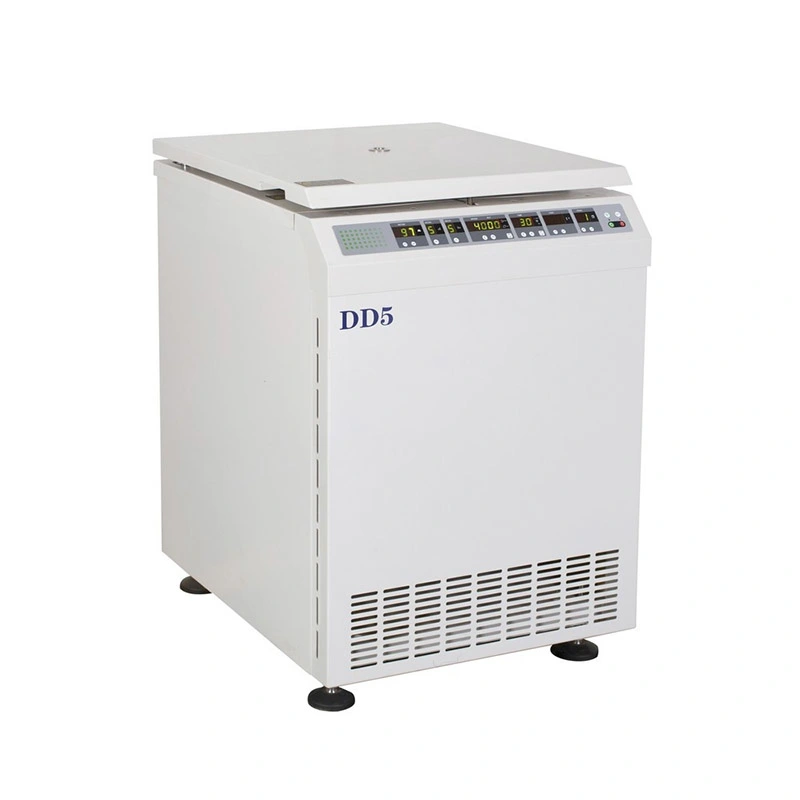

Part No. | DD5 |
Max Speed | 5000r/min |
Max RCF | 4660×g |
Max Capacity | 2000ml |
Speed Accuracy | ±20r/min |
Time Range | 0-999min/sec |
Power Supply | AC 220V 50Hz 15A |
Noise | ≤60dB |
Dimension | 760×630×920mm |
Weight | 150kg |
Rotor
Model | Number | Capacity | Max Speed(r/min) | Max RCF(×g) | Dimension of tube(mm) |
Angle Rotor | No.37 | 12×10/15ml | 5000 | 3030 | Φ16×81 |
| Swing Rotor | No.63 | 4×50/100ml | 5000 | 4660 | Φ38×124 |
No.69-1 | 4×500ml Adaptor 12×50/8×100ml | 4000 | 3150 | Φ80×140 | |
No.69-2 | 72×5/7ml | 4000 | 3150 | Vacumm Blood Collection Tube | |
No.69-3 | 96×5/7ml | 4000 | 3150 | ||
No.70-1 | 4×250ml Adaptor 8×50/36×10m | 4000 | 2930 | Φ64×112 | |
No.70-2 | 48×5/7ml | 4000 | 2930 | Vacumm Blood Collection Tube | |
No.81-1 | 8×50/100ml | 4000 | 2960 | Φ28×105-115 | |
No.81-2 | 32×10/15ml | 4000 | 2960 | Φ16×114-118 | |
Microtiter Plate Rotor | No.43 | 2×2×96 Holes | 4000 | 2540 | PCR Plate Microtiter Plate Rotor |
