Features
1. Microprocessor control, operated by touch panel, visual digital display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, multistage damping system,imported super speed bearing from Europe, smooth running and maintenance free.
3. The freon-free compressor, fast cooling and low noise, unique pre-cooling design, green and high efficiency.
4. Behch-top model and steel body, stainless steel centrifugal chamber, key components are imported, easy to clean and durable.
5. Equipped with overspeed, over temperature, door interlock, imbalance protection functions, and the function of service life calculation, ensure safety. The rotor can be high temperature & high pressure sterilization.
6. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, 40 kinds of self-defining operating programs can be stored and recall, to achieve the best centrifugal result.
7. Hold-on and transient centrifuging, easy to diverse centrifugation.
Technical Parameter

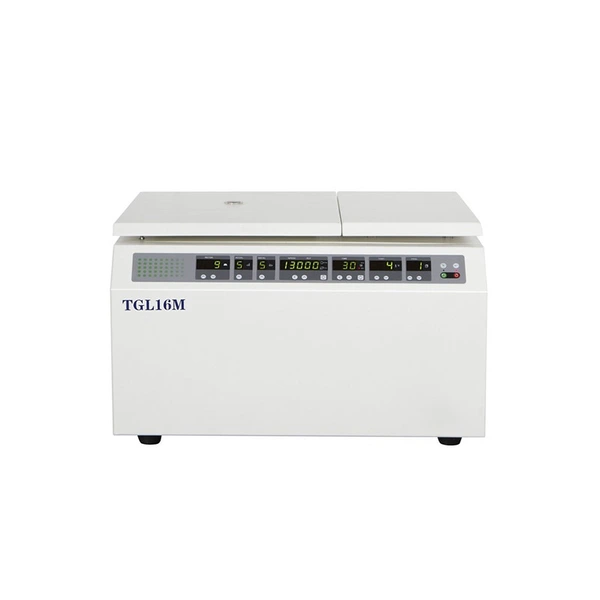

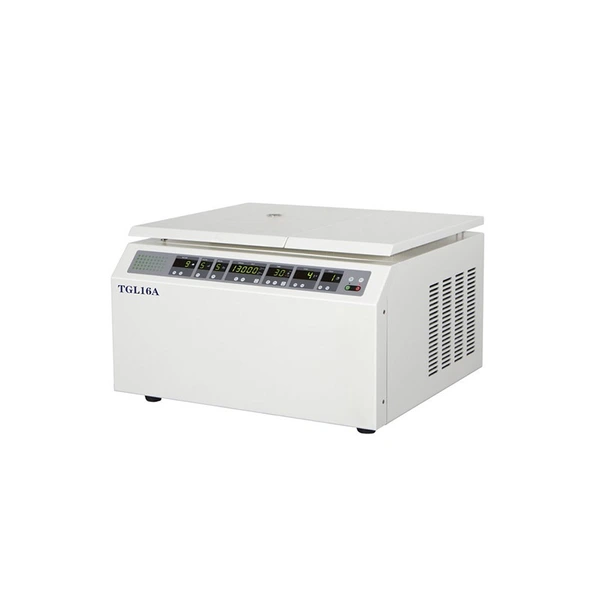

Part No. | TGL16M | TGL16A |
Max Speed | 16600r/min | 16000r/min |
Max RCF | 19560×g | 18170×g |
Max Capacity | 400ml | 50ml |
Speed Accuracy | ±20r/min | |
Temperature Range | -20℃-+40℃ | |
Temperature Accuracy | ±1℃ | |
Time Range | 0-999min/sec | |
Power Supply | AC 220V 50Hz 15A | |
Noise | ≤60dB | |
Dimension | 585×630×370mm | |
Weight | 90kg | 80kg |
TGL16M Rotor
Model | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube(mm) |
Angel Rotor | No.6-1 | 12×1.5/2.0ml | 16600 | 19560 | Φ10×42 |
No.6-2 | 18×0.5ml | 16600 | 19560 | Φ8×32 | |
No.9 | 24×1.5/2.0ml | 13000 | 16810 | Φ10×42 | |
No.12 | 10×5ml | 13000 | 12280 | Φ14×54 | |
No.16 | 12×10ml | 12000 | 14480 | Φ16×81 | |
No.56-1 | 48×1.5/2.0ml | 13000 | 14740 | Φ10×42 | |
No.22 | 6×50ml | 12000 | 16260 | Φ28×105 | |
No.52-1 | 8×15ml | 12000 | 16740 | Φ16×115 | |
No.31 | 4×100ml | 10000 | 12280 | Φ38×124 | |
Microtiter Plate Rotor | No.44 | 2×48 Holes | 3000 | 1170 | Microtiter Plate Rotor |
TGL16A Rotor
Model | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube(mm) |
Angel Rotor | No.6-1 | 12×1.5/2.0ml | 16000 | 18170 | Φ10×42 |
No.6-2 | 18×0.5ml | 16000 | 18170 | Φ8×32 | |
No.12 | 10×5ml | 13000 | 12280 | Φ14×54 |
