Features
1. Microprocessor control, operated by touch panel, visual digital display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, Imported super speed bearing from Europe, smooth running and maintenance free.
3. Multistage damping system, the freon-free compressor from Europe, low noise and slight vibration, green.
4. Behch-top model and steel body, stainless steel centrifugal chamber, key components are imported, easy to clean and durable.
5. Equipped with overspeed, over temperature, door interlock, imbalance protection functions, and the function of service life calculation, ensure safety. The rotor can be high temperature & high pressure sterilization.
6. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, 40 kinds of self-defining operating programs can be stored and recall, to achieve the best centrifugal result.
7. Hold-on and transient centrifuging, easy to diverse centrifugation.
Technical Parameter
Part No. | TGL20M | TGL18M |
Max Speed | 20500r/min | 18600r/min |
Max RCF | 29600×g | 24560×g |
Max Capacity | 400ml | 400ml |
Speed Accuracy | ±20r/min | |
Temperature Range | -20℃-+40℃ | |
Temperature Accuracy | ±1℃ | |
Time Range | 0-999min/sec | |
Power Supply | AC 220V 50Hz 18A | AC 220V 50Hz 15A |
Noise | ≤60dB | |
Dimension | 585×630×370mm | |
Weight | 95kg | 90kg |

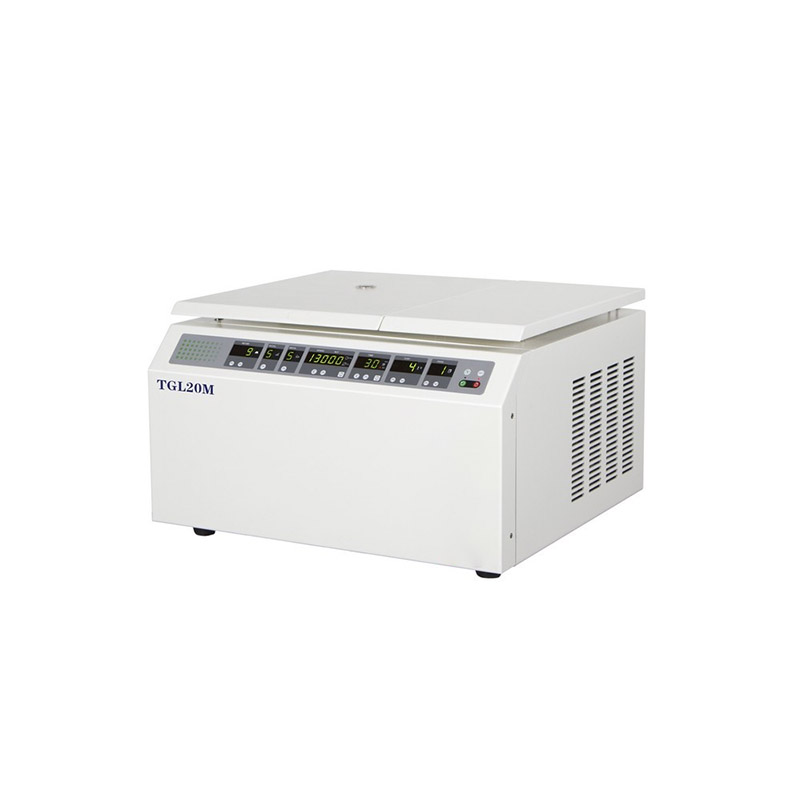

TGL20M Rotor
| Model | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube(mm) |
| Angel Rotor | No.6-1 | 12×1.5/2.0ml | 20500 | 29600 | Φ10×42 |
| No.6-2 | 18×0.5ml | 20500 | 29600 | Φ8×32 | |
| No.9 | 24×1.5/2.0ml | 16000 | 25470 | Φ10×42 | |
| No.12 | 10×5ml | 16000 | 18600 | Φ14×54 | |
| No.16 | 12×10ml | 15000 | 22640 | Φ16×81 | |
| No.56-1 | 48×1.5/2.0ml | 13000 | 14740 | Φ10×42 | |
| No.22 | 6×50ml | 13000 | 19080 | Φ28×105 | |
| No.52-1 | 8×15ml | 12000 | 16740 | Φ16×115 | |
| No.31 | 4×100ml | 10000 | 12280 | Φ38×124 | |
| Microtiter Plate Rotor | No.44 | 2×48 Holes | 3000 | 1170 | Microtiter Plate Rotor |

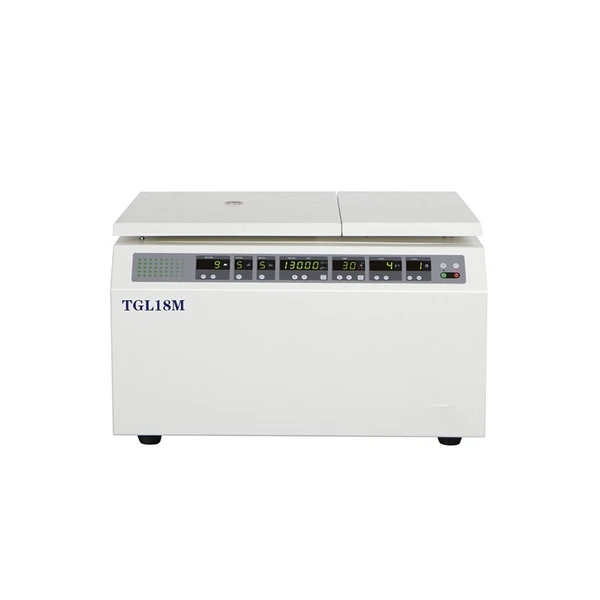

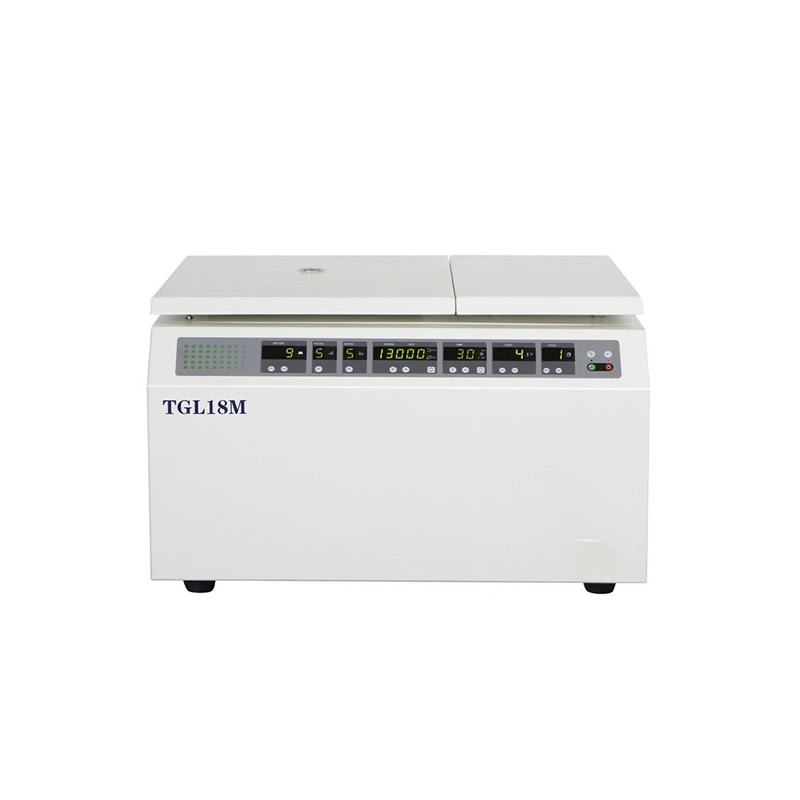

TGL18M Rotor
Model | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube(mm) |
Angel Rotor | No.6-1 | 12×1.5/2.0ml | 18600 | 24560 | Φ10×42 |
No.6-2 | 18×0.5ml | 18600 | 24560 | Φ8×32 | |
No.9 | 24×1.5/2.0ml | 15000 | 22380 | Φ10×42 | |
No.12 | 10×5ml | 13000 | 12280 | Φ14×54 | |
No.16 | 12×10ml | 12000 | 14480 | Φ16×81 | |
No.56-1 | 48×1.5/2.0ml | 13000 | 14740 | Φ10×42 | |
No.22 | 6×50ml | 12000 | 16260 | Φ28×105 | |
No.52-1 | 8×15ml | 12000 | 16740 | Φ16×115 | |
No.31 | 4×100ml | 10000 | 12280 | Φ38×124 | |
Microtiter Plate Rotor | No.44 | 2×48 Holes | 3000 | 1170 | Microtiter Plate Rotor |
