Features
1. Brushless DC motor, maintenance free.
2. Controlled by microcomputer with touching panel and digital display. Easy to operate
3. Steel body, stainless steel centrifugal chamber, corrosion resistant and easy to clean, ensure security, stability.
4. Arbitrarily setting the parameter of speed, time and other parameters. Easy to use.
5. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, 40 kinds of self-defining operating programs can be stored and recall, to achieve the best centrifugal result.
6. Hold-on and transient centrifuging, easy to diverse centrifugation.
Technical Parameter

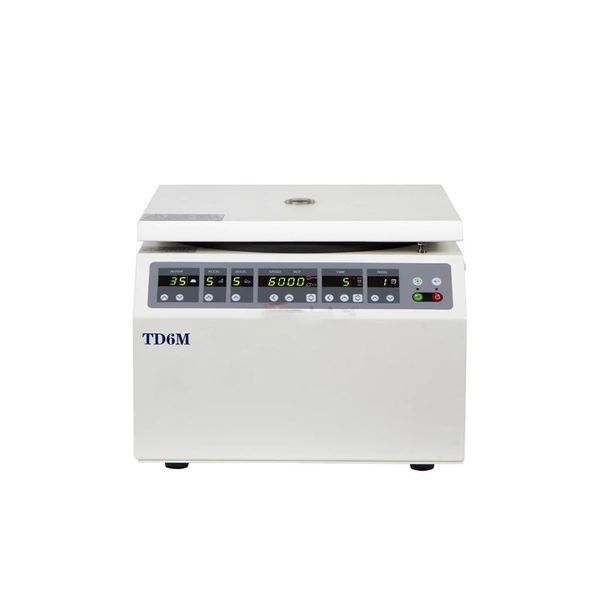

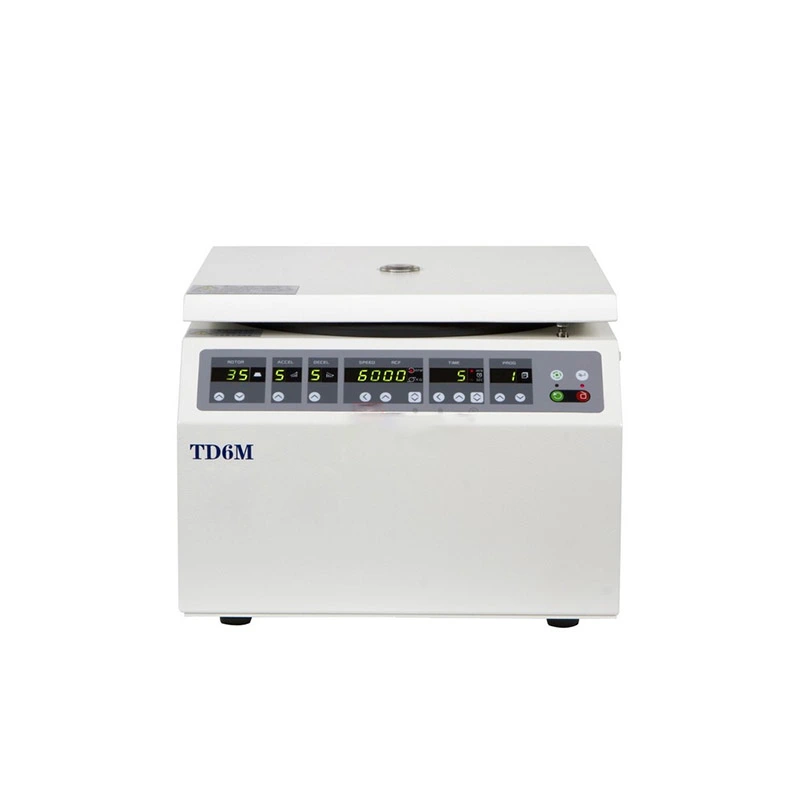

Part No. | TD6M | TD5G |
Max Speed | 6000r/min | 5000r/min |
Max RCF | 5120×g | 3550×g |
Max Capacity | 300ml | 300ml |
Speed Accuracy | ±20r/min | |
Time Range | 0-999min/sec | |
Power Supply | AC 220V 50Hz 8A | |
Noise | ≤60dB | |
Dimension | 340×400×270mm | |
Weight | 20kg | |
TD6M Rotor
Model | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube(mm) |
Angle Rotor | No.37 | 12×10ml | 6000 | 5120 | Φ16×82 |
No.37 | 12×15ml | 6000 | 5120 | Φ16×115 | |
No.38 | 4×50ml | 6000 | 5120 | Φ38×124 | |
No.38 | 6×50ml | 6000 | 5120 | Φ38×124 |
TD5G Rotor
Model | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube(mm) |
Angle Rotor | No.37 | 12×10ml | 5000 | 3550 | Φ16×82 |
No.37 | 12×15ml | 5000 | 3550 | Φ16×115 | |
No.38 | 4×50ml | 5000 | 3550 | Φ38×124 | |
No.38 | 6×50ml | 5000 | 3550 | Φ38×124 |
