Applications: National defense facilities, electronic industry, pharmaceutical industry, nuclear power station, medical and health, laboratory, etc.

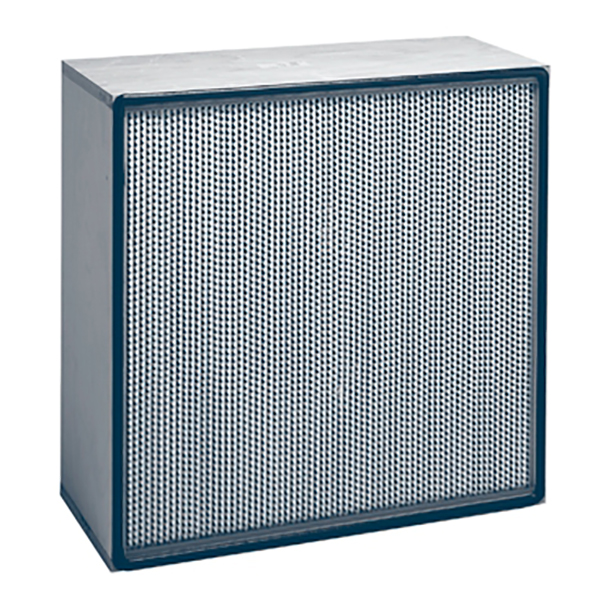

Structure type: SeparatorBox Filter
Efficiency: H13, H14
MPPS Efficiency: H13≥99.95%, H14≥99.995%
Recommended final pressure: 600 Pa
Temperature/Humidity: ≤70℃ / 100%RH
Materials
| Frame | Extruded aluminum,Aluminum sheet,Galvanized steel sheet,Stainless steel sheet |
Separator | Aluminum foil, Paper |
Media | Superfine glass fiber |
Gasket | CR、EVA、EPDM、PU |
Sealant | Polyurethane |
Product Information
Model | Size (WxHxD)mm | Efficiency EN1822 | Airflow/Initial Pressure m³/h/Pa (±15%) | Filter Area ㎡ |
YZ13SFS-305610150 | 305x610x150 | H13 | 500/220 | 3.28 |
YZ13SFS-610610150 | 610x610x150 | H13 | 1000/220 | 6.42 |
YZ13SFS-305610220 | 305x610x220 | H13 | 670/22 | 5.31 |
YZ13SFS-610610220 | 610x610x220 | H13 | 1340/220 | 10.56 |
YZ13SFS-305610292 | 305x610x292 | H13 | 1000/250 | 7.27 |
YZ13SFS-610610292 | 610x610x292 | H13 | 2000/250 | 14.24 |
YZ14SFS-305610150 | 305x610x150 | H14 | 500/260 | 3.28 |
YZ14SFS-610610150 | 610x610x150 | H14 | 1000/260 | 6.42 |
YZ14SFS-305610220 | 305x610x220 | H14 | 670/260 | 5.31 |
YZ14SFS-610610220 | 610x610x220 | H14 | 1340/260 | 10.56 |
YZ14SFS-305610292 | 305x610x292 | H14 | 1000/280 | 7.27 |
YZ14SFS-610610292 | 610x610x292 | H14 | 2000/280 | 14.24 |
Special size and specifications can be customized.
