Separator HEPA Filters | High-Efficiency Air Filtration Solutions

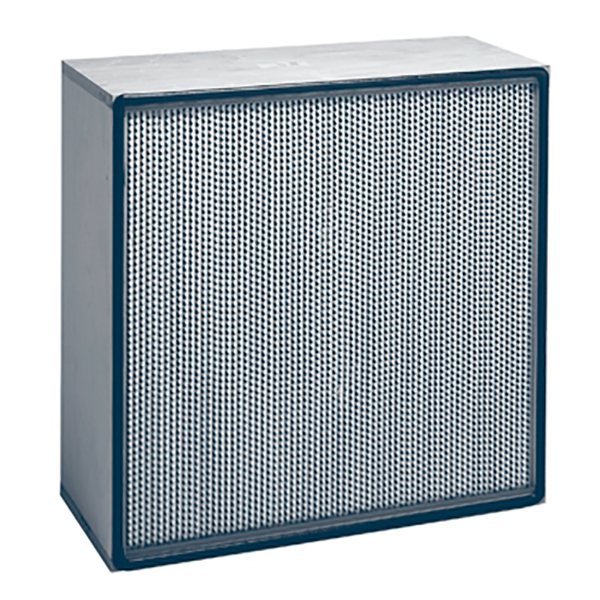

Separator HEPA Filter(Incline)

  • High structural strength

  • Large filtration area

  • Long service life

  • High efficiency and high air handling capacity

  • Scan and test one by one according to EN1822 standard


Description

Applications: National defense facilities, electronic industry, pharmaceutical industry, nuclear power station, medical and health, laboratory, etc

Structure type: Separator Box Filter

Efficiency: H13, H14

MPPS Efficiency: H13≥99.95%, H14≥99.995%

Recommended final pressure: 600 Pa

Temperature/Humidity: ≤70℃ / 100%RH


Materials

Frame
Extruded aluminum

Separator

Aluminum foil

Media

Superfine glass fiber

Gasket

CR、EVA、EPDM、PU

Sealant

Polyurethane


Product Information

Model

Size

(WxHxD)mm

Efficiency

EN1822

Airflow/Initial Pressure

  m³/h/Pa (±15%)

Filter Area ㎡

YZ13SFH-305610150

305x610x150

H13

800/260

5.11

YZ13SFH-610610150

610x610x150

H13

2000/260

10.49

YZ13SFH-305610220

305x610x220

H13

1350/260

8.23

YZ13SFH-610610220

610x610x220

H13

2600/260

16.49

YZ13SFH-305610292

305x610x292

H13

1700/280

11.34

YZ13SFH-610610292

610x610x292

H13

3400/280

23.26

YZ14SFH-305610150

305x610x150

H14

800/280

5.11

YZ14SFH-610610150

610x610x150

H14

2000/280

10.49

YZ14SFH-305610220

305x610x220

H14

1350/280

8.23

YZ14SFH-610610220

610x610x220

H14

2600/280

16.49

YZ14SFH-305610292

305x610x292

H14

1700/300

11.34

YZ14SFH-610610292

610x610x292

H14

3400/300

23.26

Special size and specifications can be customized.
